5

Remove glass assembly before installing fireplace

on or into a wall.

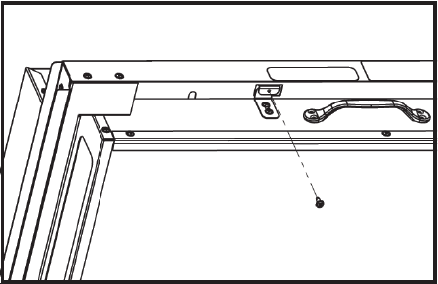

1. Remove screws securing glass assembly on

the mounting tabs. (Figure 1)

2. Use both handles on the sides of the glass

assembly, lift and remove the assembly from

the fireplace.

3. Please glass assembly with it’s back facing

down on a flat surface.

Wall Mounting Instructions:

1. Leave the trim uninstalled until step 9.

2. Select a location for the fireplace, preferably

above an electrical outlet and there must be at

least one wall stud behind for the fireplace to

mount onto. The bottom of the unit must be a

minimum of 4" space above the floor (mounting

holes 29.5" minimum above the floor). Access to

the electrical outlet must be maintained. Ensure

the installation meets the national and state/

provincial electrical codes.

FIGURE 1
